5.2.2 5-Point Harness

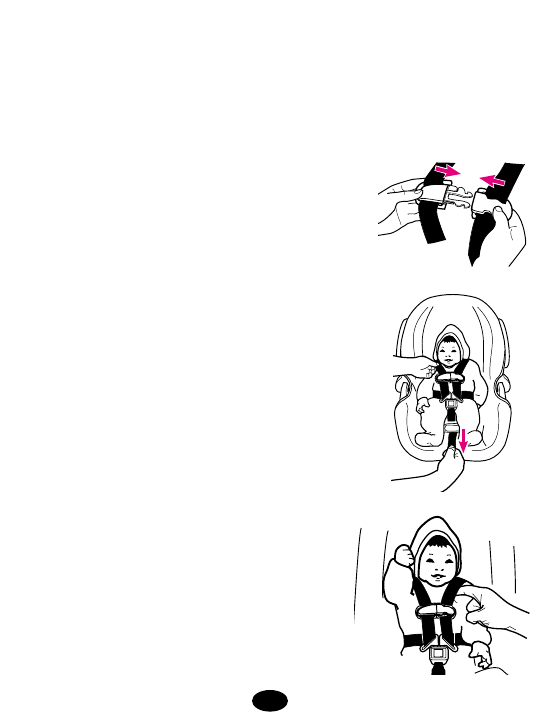

5. Insert the two buckle tongues into the harness buckle on the

crotch strap. Make sure that you hear each tongue click into

the buckle.

DO NOT use the infant restraint if the

harness does not latch in place. Call

Graco at 1-888-224-6549.

6. Snap harness clip pieces together

.

7. Pull on harness adjustment strap to tighten

straps as shown

. CHECK that both

straps are flat and tight on shoulders.

8. Position harness clip in middle of chest,

level with armpits and away from the

neck

.

9. SAFETY CHECK:

a) CHECK that harness straps are

not twisted.

b) CHECK that the harness is snug. You

should not be able to insert more than one

finger between the harness and your

child’s shoulder

.






